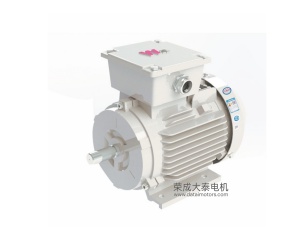

YBK3煤矿井下用隔爆型三相异步电动机

机座号:80~355
功率:0.18~375kW
电压:380/660/1140V
频率:50Hz
绝缘等级:F
防护等级:IP55
环境温度:-20~+40℃

Frame:80~355
Power: 0.18~375kWV
Voltage: 380/660/1140V
Frequency: 50Hz
Insulation Class:F
Protection Degree: lP55
Ambient Temperature:-20~+40℃

YBK3系列煤矿井下用隔爆型三相异步电动机，是在 YBK2系列基础上统一设计开发的更新换代产品。该系列依据GB3836.1-2010《爆炸性环境第1部分:设备 通用要求》和 GB3836.2-2010〈爆炸性环境第2部分:由隔爆外壳“d”保护的设备》，制成隔爆型。执行标准JBT 9593.1-2015《煤矿用隔爆型三相异步电动机技术条件 第1部分: YBK3 系列煤矿井下用隔爆型三相异步电动机(机座号80~ 355)》，同时也符合 MT451-1995《煤矿用隔爆型低压三相异步电动机安全性能通用技术规范》的规定，该产品具有性能优良，使用安全可靠，振动、噪声比同类产品更低的特点，符合环保要求。YBK3 系列煤矿井下用隔爆型三相异步电动机，防爆标志ExdIMb。该系列电动机适用于煤矿井下(采掘工作面)有爆炸性气体混合物存在的场所。本系列电动机的功率等级、安装尺寸符合国际电工委员会(IEC)标准，其对应关系与德国 DIN42673 标准相同，有利于出口设备的配套和引进设备的配套。

本系列电动机的外壳防护等级为IP55，冷却方式为IC411。
YBK3 系列煤矿井下用隔爆型三相异步电动机技术参数及外形安装尺寸可参考 YBX3 系列隔爆型三相异步电动机。

YBK3 series flameproof 3-phase induction motors for underground coal mine is a new product designed and developed onthe basis of YBK2 series. According to GB3836.1-2010 (Explosive atmospheres - Part 1: Equipment-General requirements》 andGB3836.2-2010 ( Explosive atmospheres - Part 2:Equipment protection by flameproof enclosures "d") the series is made intoexplosion-proof type. The standard JB/T 9593.1-2015 ($pecification of flameproof three-phase induction motors for mines. Part1: YBK3 series flameproof three-phase induction motors for coal mines (frame size 80 w 355)》 also comply with the provisionsof MT451-1995 ( General specification for low voltage three phase flameproof induction motor for coal mine> . The products haveexcellent performance, safe and relable operation, lower vibration and noise than similar products, and meet the recuirements of environmental protection.

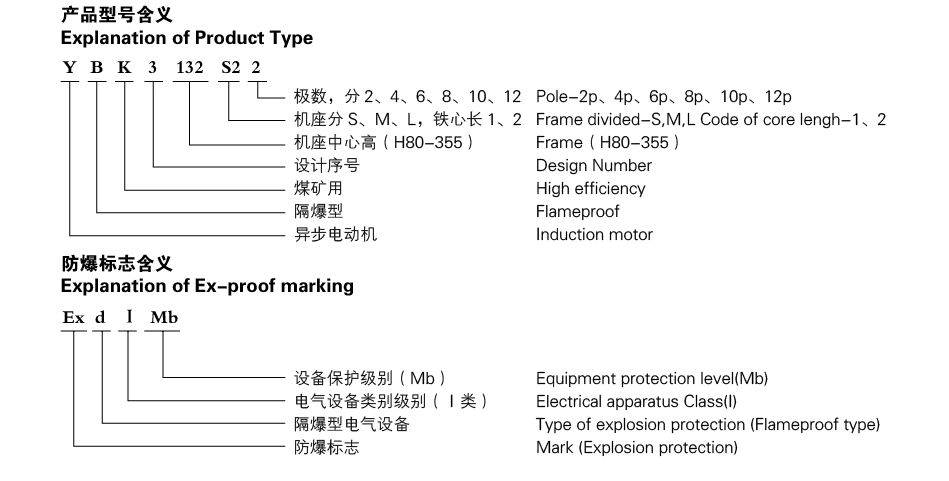

YBK3 series flameproof 3-phase induction motors used in coal mine underground, explosion-proof mark: Ex d l Mb. This seriesmotor is suitable for the places with explosive gas mixture in coal mine underground (mining face)The power grade and installation dimension of this series motor conform to the interational Electrotechnical Commission (ECstandard, and the corresponding relationship is the same as that of German DIN42673 standard, which is conducive to the matching ofexport and import equipment.

The enclosure of protection degree is lP55, cooling method is lC411

Appearance and instalation dimensions of YBK3 series flameproof 3-phase induction motors used in coal mine underground canrefer to YBX3 series flameproof 3-phase induction motors.
